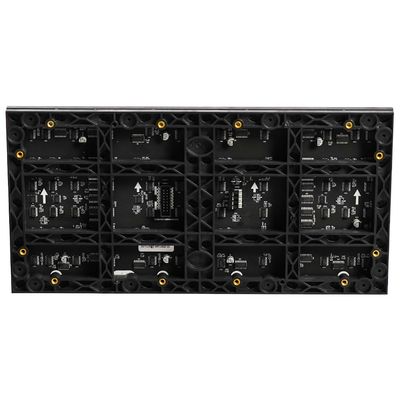

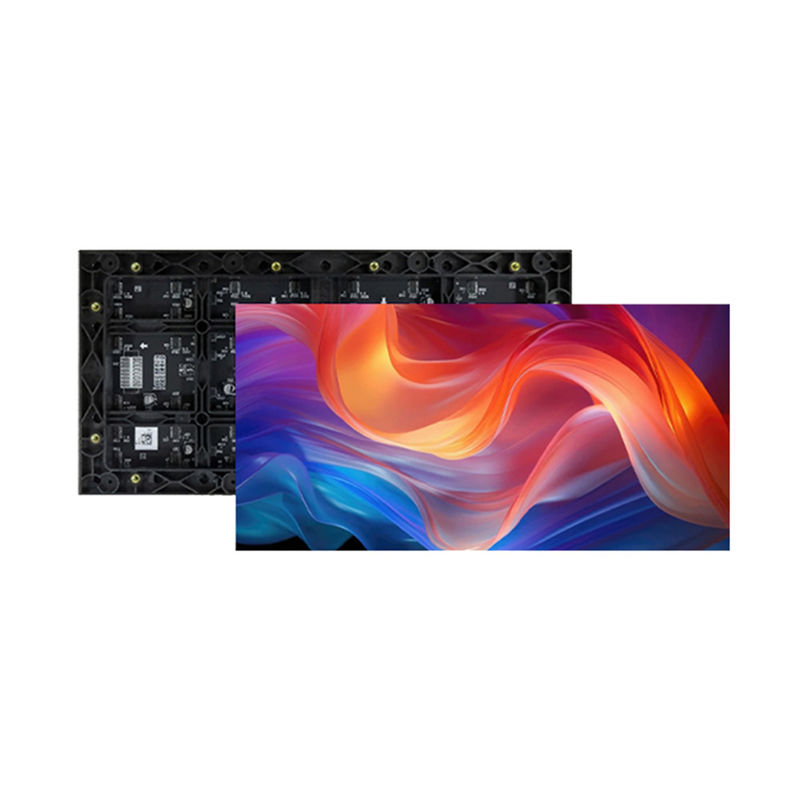

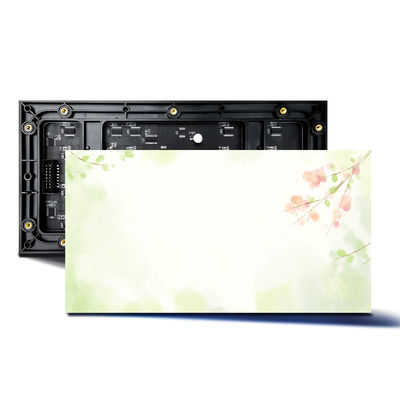

HD Full Color LED Display Module P1.25 P1.538 P1.667 P1.86 P2 LED Module Fine Pixel Pitch
Product Details:
| Place of Origin: | China |
| Brand Name: | Huixin |
| Certification: | CE,FCC,Rohs,CCC,CQC,ISO9001,ISO14001 |
| Model Number: | Indoor LED Moudle |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $3-38 |
| Packaging Details: | Carton/Wooden Case/Flight Case |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Name: | Full Color LED Display Module | Pixel Pitch (mm): | P1.25,P1.538,P1.667,P1.86,P2,P2.5,P3,P3.076,P4 |
|---|---|---|---|
| Module Size (mm): | 320x160,160*160 | Module Weight (kg): | 0.48±0.05 |
| White Balance Brightness (nits): | ≥450 | Color Temperature K: | 3000-15000adjustable |
| Viewing Angle (°): | 160 | Luminance Uniformity: | ≥97% |
| Contrast Ratio: | 5000：1 | Refresh Rate (hz): | ≥3840 |
| Typical Lifespan Value (hours): | 100000 | ||
| Highlight: | HD Full Color LED Display Module,Full Color LED Display Module P1.25,P1.86 LED Module Fine Pixel Pitch |
||
Product Description
P1.25 P1.538 P1.667 P1.86 P2 HD Fine Pixel Pitch Full-Color Indoor LED Screen Module Series
- Huixin Fine Pixel Indoor LED Module Series is a new generation of indoor high-end small-pitch HD screen. The 4K LED screen adopts all-in-one high-strength frame design, high-precision seamless splicing cabinet, excellent color uniformity and ultra-high image contrast to realize subversive visual innovation.
- Fine Pixel Indoor LED Module Series 4K LED display panel adopts a new common-cathode drive, which has lower power consumption, lower heat generation, longer service life, front/rear maintenance features, etc. It's widely used in high-end retail, shopping malls, outdoor traffic advertising, experience events, high-end hotels and other occasions.
- Fine Pitch LED Display Modules are cutting-edge display solutions that offer a host of advanced features, making them ideal for a wide range of applications
- Fine Pitch LED Display Modules offer a combination of high resolution, seamless design, enhanced viewing experience, energy efficiency, and durability. These features make them a superior choice for a wide range of applications, from corporate settings to entertainment venues.
Feature:
1. High Resolution and Clarity
2. Seamless and Modular Design
3. Enhanced Viewing Experience
4. Energy Efficiency and Durability
5. Wide Range of Applications
6. Advanced HDR Capabilities
7. Easy Installation and Maintenance
8. Customization and Integration
SPECIFICATION
| Model | DLX1.25I | DLX1.538I | DLX1.667I | DLX1.86I | DLX2.0I |
| Pixel Pitch (mm) | 1.25 | 1.538 | 1.667 | 1.86 | 2 |
| Pixel Structure | Trinity | ||||
| Module Resolution (wxh) | 256x128 | 208x104 | 192x96 | 172x86 | 160x80 |
| Module Size (mm) | 320x160 | ||||
| Module Weight (kg) | 0.48±0.05 | 0.48±0.05 | 0.48±0.05 | 0.48±0.05 | 0.45±0.05 |
| Unit Area (㎡) | 0.0512 | ||||
| Pixel Density (dots/㎡) | 640,000 | 422,500 | 360,000 | 288,906 | 250,000 |
| White Balance Brightness (nits) | ≥450 | ≥450 | ≥450 | ≥450 | ≥600 |
| Color Temperature K | 3000-15000adjustable | ||||
| Horizontal Viewing Angle (°) | 160 | ||||
| Vertical Viewing Angle (°) | 140 | ||||
| Deviation From The Center Distance Of The Luminous Point | ＜3% | ||||
| Luminance Uniformity | ≥97% | ||||
| Contrast Ratio | 5000:1 | ||||
| Peak Power Consumption (w/㎡) | ≤460 | ≤370 | ≤370 | ≤370 | ≤370 |
| Average Power Consumption (w/㎡) | ≤155 | ≤125 | ≤125 | ≤125 | ≤125 |
| Single Mode Group Current (A) | 5 | 4 | 4 | 4 | 4 |
| Power Supply Requirements (V) | DC:4.5 | ||||
| Drive Mode | constant current64S | constant current52S | constant current48S | constant current43S | constant current40S |
| Frame Switching Frequency (hz) | 50/60 | ||||
| Refresh Rate (hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Typical Lifespan Value (hours) | 100,000 | ||||
| Working Temperature Range (℃) | -10~40 | ||||
| Storage Temperature Range (℃) | -20~60 | ||||
| Working Humidity Range (rh) | 10-80%No freeze | ||||
| Storage Humidity Range (rh) | 10-85%No freeze | ||||
